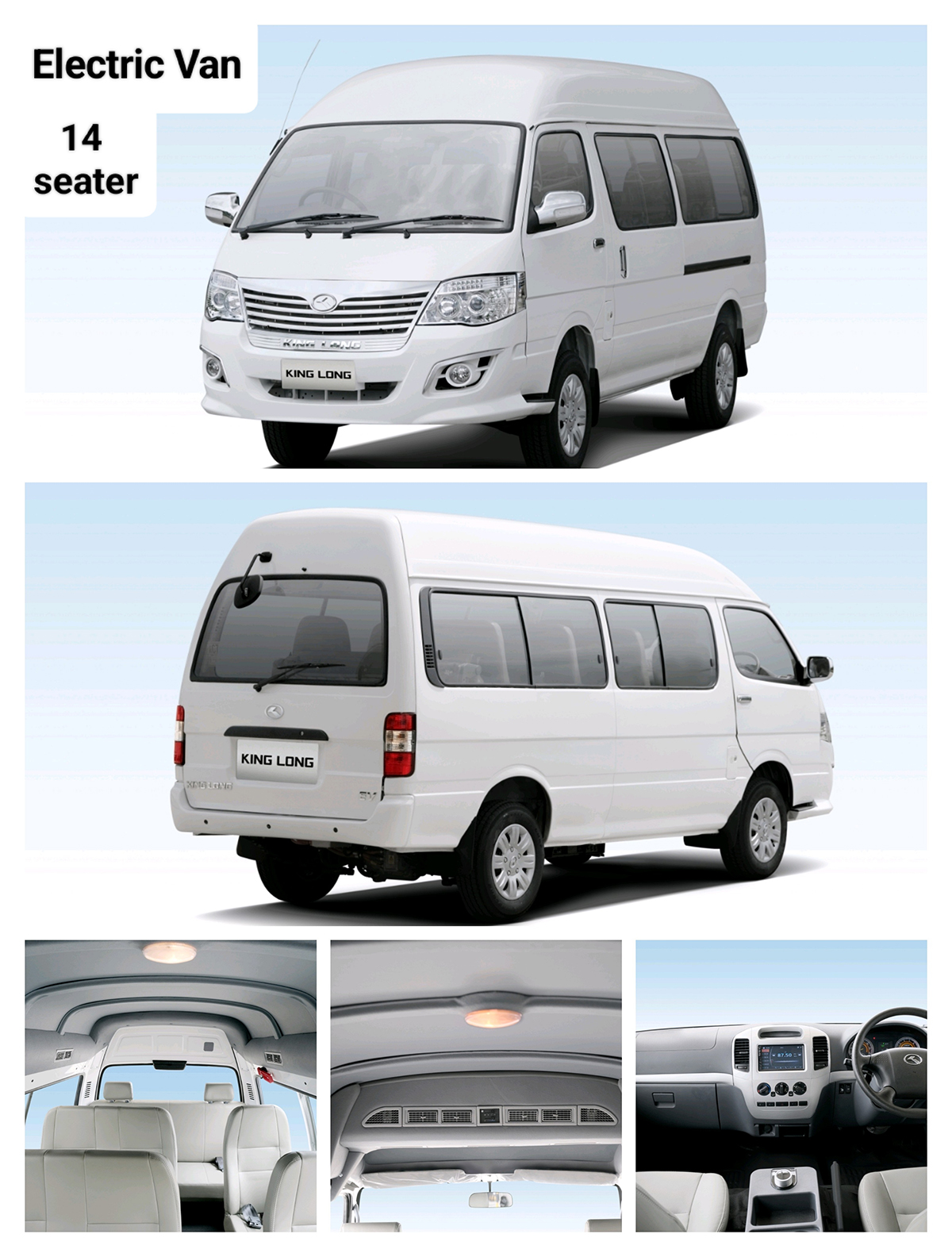

Interior Highlights
Specification
XMQ6520EV
| Body | Wheelbase | Long Axle (mm) | 2890 |
| Length * Width (mm) | 5300*1700 | ||
| High Roof (mm) | 2275 | ||
| Driver Position | RHD | ||
| Middle Door | ● | ||
| Rear Door Status | Single-door Hatchback | ● | |
| Painting | Color | White | ● |
| G.V.W (kg) | 3260 | ||
| New Energy Item | Permanent Magnet Synchronous Motor (Kw) | 50 | |
| Power Battery (kWh) | CATL 50.232 | ||
| Battery Heating System | ● | ||
| Charging System | GB/T Chinese Standard Charging Socket | ||
| Electrical Control System | Independent Electrical Control System | ||
| High Pressure System | Single Electronic Control + Auxiliary Control 3 in 1 (PDU+1.5kw DCDC+6.6kw OBC) | ● | |
| KL Pure Electric Monitoring System | --- | ||
| Chassis | Wheel Rim | Steel Wheel Rim | ● |
| Spare Tyre (Steel Wheel Rim) | -- | ||
| Tyre | Tubeless Tyre 195R15LT8PR | ||
| Suspension | Front Suspension | Double Cross Arm Independent Suspension | |
| Rear Suspension | Leaf Spring Dependent Suspension | ||
| Steering | Electrical Power Steering | ● | |
| Steering Column | Adjustable | ● | |
| Security | Brake System | Front Disc & Rear Drum | ● |
| Front Hand Brake | ● | ||
| ABS | ● | ||
| EBD | ● | ||
| Vacuum Booster (Brake Force Booster) | ● | ||
| Seat Belt | Three-point Type in Driving Area + Two-point Type in Passenger Area | ● | |
| Driver without Seat Belt Alarm (Image + Sound) | ● | ||
| Door Lock Control | Door Not Closed Alarm (Image) | ● | |
| Low Speed Alarm | Beep Sound Device For Start and Speed Below 20Km/h | ● | |
| Reverse Radar | Reversing Buzzer | ● | |
| High-mounted Braking Lamp | High-mounted Braking Lamp | ● | |
| Exterior | Anti-scratch Strip | Chrome Side Anti-scratch Stri | --- |
| Reflective Logo | Body Reflective Logo | --- | |
| Front Wall Model | 2013 KINGWIN Front Wall Model | ● | |
| Side Wall Ventilation Window | Value Ventilation Window | ● | |
| Wheel Front & Rear Mudguard | Wheel Front & Rear Mudguard | ● | |
| External Rearview Mirror | Power Rearview Mirror | ● | |
| Glass | White | ● | |
| Headlamp | Headlamp (ESC) | ● | |
| Front Fog Lamp | Front Fog Lamp | ● | |
| Taillamp | Standard Taillamp | ● | |
| Rear Bumper | Rear Bumper With Step | ● | |
| Rear Scrubber | --- | ||
| Rear Wiper | ● | ||
| Rear Defrost | ● | ||
| Rear Floor Mirror | --- | ||
| Interior | Instrument Desk | 2013 New Instrument Desk + Chrome Trim Driver Cabin | ● |
| Central Storage Box | ECO Central Storage Box | ● | |
| EV Dashboard | EV LCD Dashboard | ● | |
| EV Shifting Ball | EV Shifting Ball | ● | |
| Ceiling | Gray Flannel Ceiling (Honeycomb Panel + Top Bow With Wrapping) | ● | |
| Middle Partition | Middle Partition (Without Viewing Window) | --- | |
| Passenger Area Lights | Standard Rear Roof Light (1pc) | ● | |
| Drivr Area Floor Cover | Grey PVC + Felt | ● | |
| Upper Carpet In Passenger Area | PVC + Non-woven Fabric | ● | |
| Lower Carpet In Passenger Area | Bamboo Wood Floor | ● | |
| Interior Rearview Mirror | Standard Interior Rearview Mirror | ● | |
| Middle Door Step | Press Strip Step | ● | |
| Rear Door Press Strip | Stadnard Press Strip | ● | |
| Auxiliary Handrail | Copilot Handrail | ● | |
| Fire Extinguisher | 0.5Kg (1pc) | ● | |
| Cigarette Lighter | 12V | ● | |
| Sun Visor | Driver Sun Visor | ● | |
| Copilot Sun Visor | ● | ||
| Safety Hammer | 2pcs | ● | |
| Seat | Seat Arrangement | 14（2+3+3+3+3） | ● |
| Fabric | Grey Artificial Leather | ● | |
| Audio and video system | Radio | MP5+Reversing Monitor | ● |
| Stereo Speakers | Quantity | 2 | |
| A/C | A/C | Standard Manual Front & Rear A/C | ● |
| Front heater | Front Heater | --- | |
| Operation | Front Window | Power Window | ● |
| Door Lock Control | Central Control Door Lock (With Remote Control) | ● | |
| Key | Remote Control Key | ● | |
| Long-range Lock | Long-range Lock (Must Be LCD Dashboard) | --- | |
| ●: Standard --- : Non | |||
