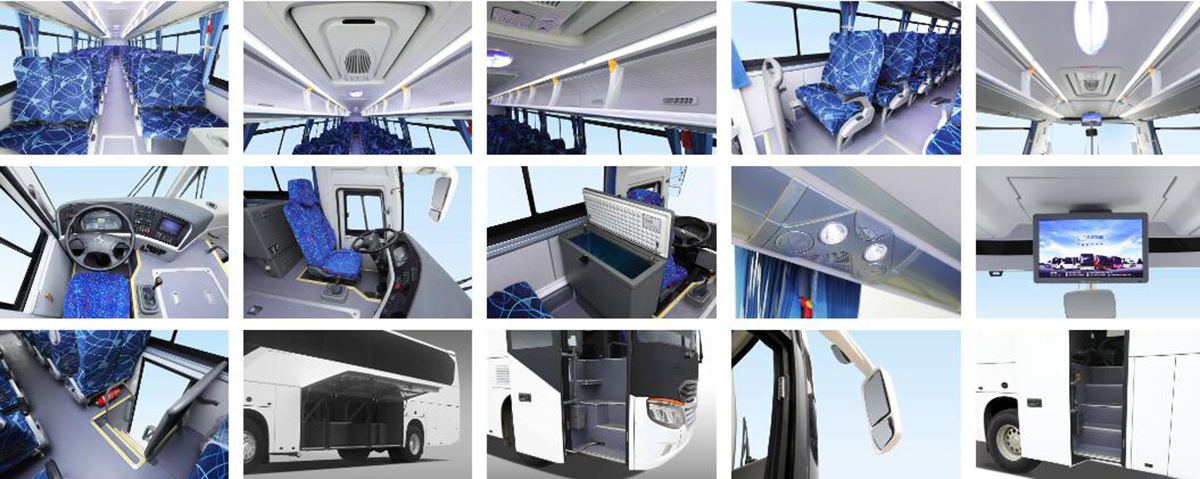

Interior Highlights
Specification
Model
XMQ6121AYW
Driving (LHD/RHD)
LHD
TECHNICAL PARAMETERS
Body structure
Semi-integral
Length * Width * Height (mm)
12060*2550*3960
Maximum speed（km/h）
125
Gradeability（%）
35
CAPACITY
Seats
55+1
Maximum passenger capacity
68
CHASSIS
Fuel tank capacity (L)
440
Engine（Hp）
360
Transmission
Manual
Suspension system
Leaf spring
Front Axles（T）
8
Rear Axles（T）
13
ABS
ABS
Brake system (Disc/Drum)
Front & Rear: Drum
Steering system
Power steering
Tire
315/80R22.5
Electromagnetic fan
Silicone Oil
Body lifting device
Without
BODY
Doors
Aluminum, remote control, outward-opening
Side windows
● Tempered glass ◎ Double glazed
Driver seat
● Air-dampened, adjustable ◎ Mechanical dampened, adjustable
Passenger seats
Adjustable passenger seat with high back
Mirror type
Wide view electric rear view mirrors ( with defroster)
OTHER CONFIGURATION
Air conditioner（KW）
● 32000 Kcal/h ◎ 34000 Kcal/h
Heating and defrosting states
● Defrosting from engine heat source
◎ With independent heater
Electrical instrument
● CAN Meter ◎ CAN System
Automobile data recorder
● With tachograph ◎ Without tachograph
Player
● Hard Disk Player ◎ DVD player ◎ MP3 player
Middle door and back-up monitor
● LCD monitor
Guideboard
◎ Route Display
NEW TECHNOLOGY
On-board computer
Without
360 panoramic view
◎
EPB
◎
Note: ● standard specification; ◎ optional specification; ※ special clarification; those without symbols are standard specification
