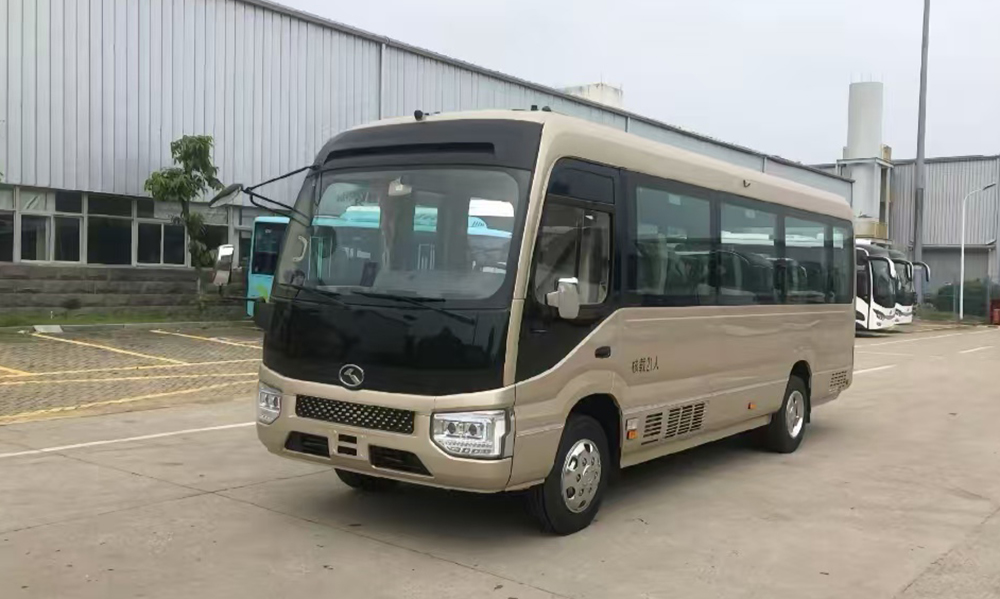

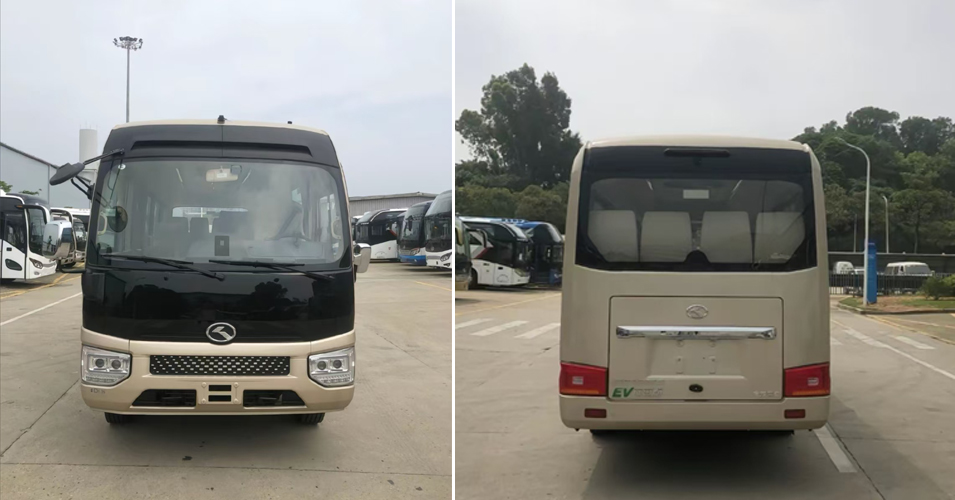

Exterior Highlights

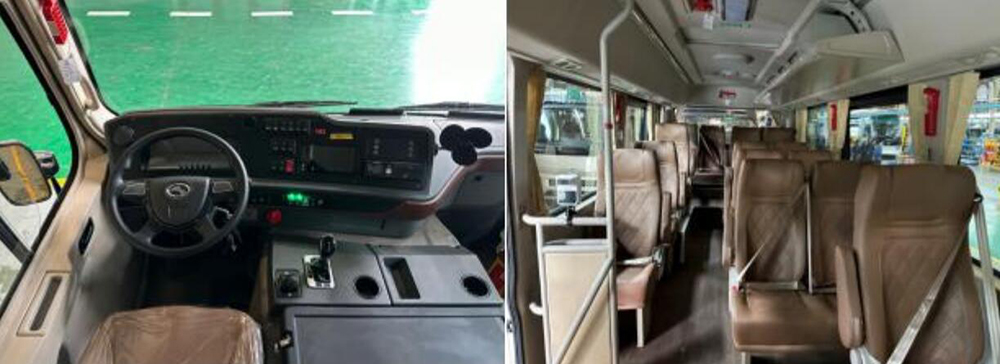

Interior Highlights
Specification
Bus Model No.
XMQ6716AYBEVL01 in CBU
Overall dimension(mm)
7125*2080*2830
Seat Capacity
22+1 (passenger seats + driver seat)
12-100% Charging time (min)
70-100 (with 80kw/750V GB/T Chinese standard charger)
Battery capacity (kWh)
114.52
Mileage (km)
150-180
Specification
Axle:
Chinese front axle (3.4T) & rear axle (6T)
Brake:
Front disc & rear disc brake, electric regenerative braking system
Suspension:
Leaf spring (front 3 / rear 3)
ABS:
WABCO EBS + ESC
Steering:
Chinese electric steering pump, Chinese hydraulic powering steering gearbox
Tire:
Double-coin tubeless tyre 215/75R17.5, steel wheel rim 17.5脳6.00
Cooling system:
ICS intelligent cooling system
Dashboard:
VITI CAN System for dashboard (with driving recorder, no printing module)
Body:
Full press bus body, E-coating treatment, driver door and middle door
A/C:
King Long non-independent built-in electric A/C with cooling function only, A/C integrated water cooling unit
Rear view mirror:
King Long wide area electric rear view mirror
Passenger door:
Swing-out, aluminum remote control passenger door
Side window:
Full sealed WHITE glass for side window
Driver window:
Aluminum frame manual sliding driver window
Luggage rack:
Luggage rack on the left side
Instrument desk:
Luxury instrument desk
Floor cover:
Chinese advanced wear-resistant floor cover
Driver seat:
Mechanical damping adjustable driver seat with artificial leather (three-point seat belt)
King Long Yuexiang non-adjustable passenger adjustable seats with
Passenger seat:
artificial leather (no foot pedal, no sliding, two-point retractable seat belt)
Audiovisual system:
MP3 player
CCTV system:
CCTV system (500G hard disc host), 4cameras
Floor:
Flat floor
Paint:
Flat paint
Auxiliary:
No heater
Low voltage electric defrostingDigital clock
Guardrail behind passenger door
Color reverse monitor (7inch LED display on instrument desk & 1
camera)
Driver & co-pilot sunshade, curtains for all side windows
Glass type emergency roof hatch with sunshade
Kingwin on-board computer basic version
Reverse buzzer
Safety hammer * 5pcs
Roof lamp * 3pcs, interior atmosphere lamp
Indoor fire extinguisher 2kg * 1pc
Battery:
CATL lithium iron phosphate battery system (114.52kWh)
King Long motor, TZ290XSKL120, permanent magnet synchronous
Drive motor:
motor
Peak power / torque --- 160kW / 1200Nm
VCU:
King Long electric motor controller & five-in-one controller
Charge mode:
Chinese GB standard, one charging socket on the bus
Electric power pump unit:
VIE machining electric power pump
