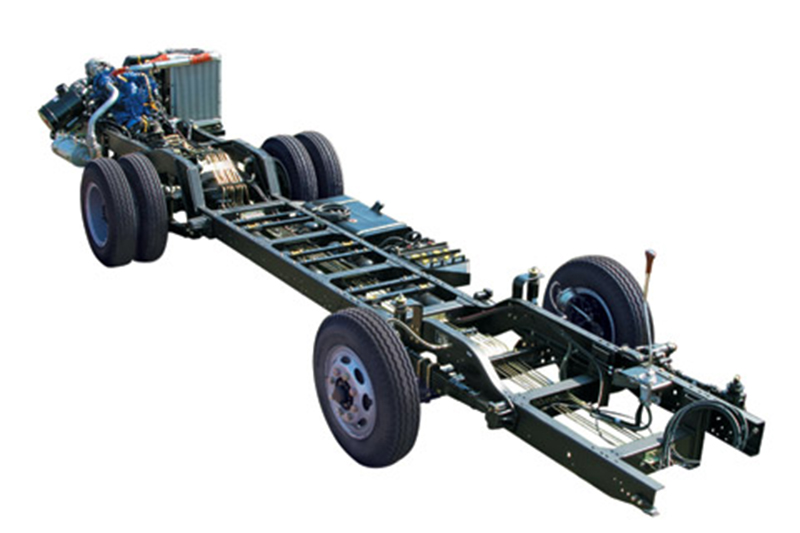

FZ6109 CNG bus chassis 10.5 meter (CKD)
|
|
| Frame: | three-stage electrophoresis |
| Engine: | Yuchai YC6J210N-52 ,Euro 5 |
| Gearbox: | Qijiang QJ805 |
| Clutch: | diaphragm spring clutch |
| Front axle: | FANGSHENG 7.5T , 22.5" Brake Disc , ABS |
| Rear axle: | FANGSHENG 13T, fine gear, 22.5" Brake Disc , ABS |
| steering column: | Combined, steering wheel adjustable (without ignition switch, combinated switch) |
| Steering: | Chinese |
| Brake system: | double way brake system,with VIE valves |
| Cooling: | copper water tank |
| Intercooler: | mechanical fan |
| Inlet/exhaust: | big flow air cleaner, domestic silence |
| Suspension: | front 2 rear 4 airbags ,with front and rear stabization rods, Height control valve |
| wheel rim: | Steel rim 8.25*22.5 |
| Tyre: | Giti 275/70R22.5 , without spare tyre |
| Gas cylinder: |
CNG Steel cylinder 80L x 6 pcs |
Note: we are able to customize different chassis length with different specification for citybus and coach.
Chassis length can be 6m to 12m, low entry and low floor type.
Engine can be Cummins, Yuchai, Weichai and other brands.
for other specification, welcome to enquiry.
