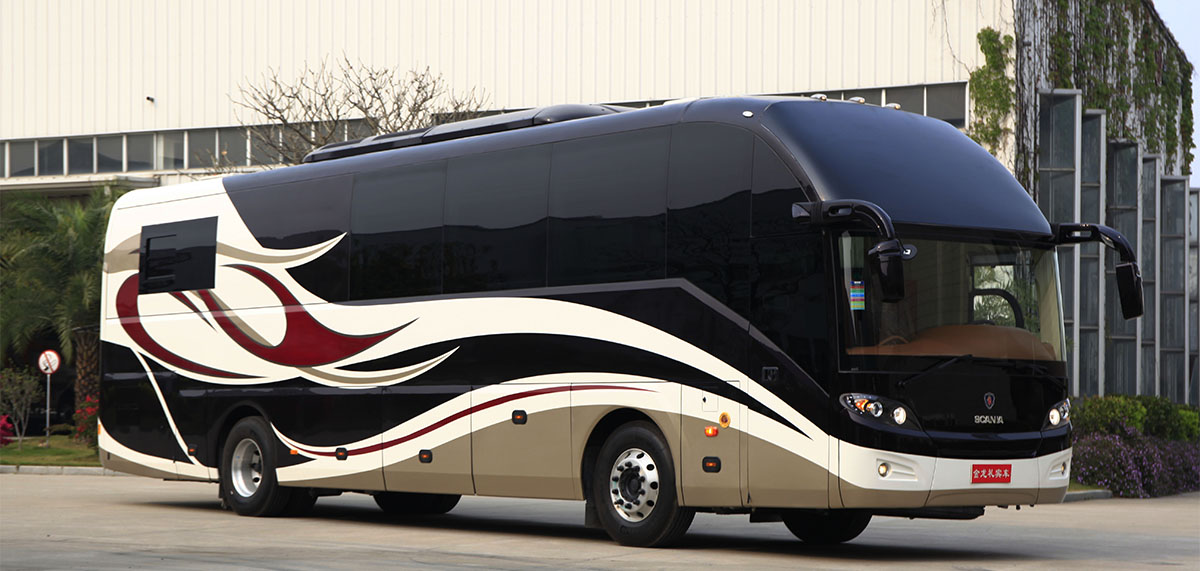

Exterior Highlights

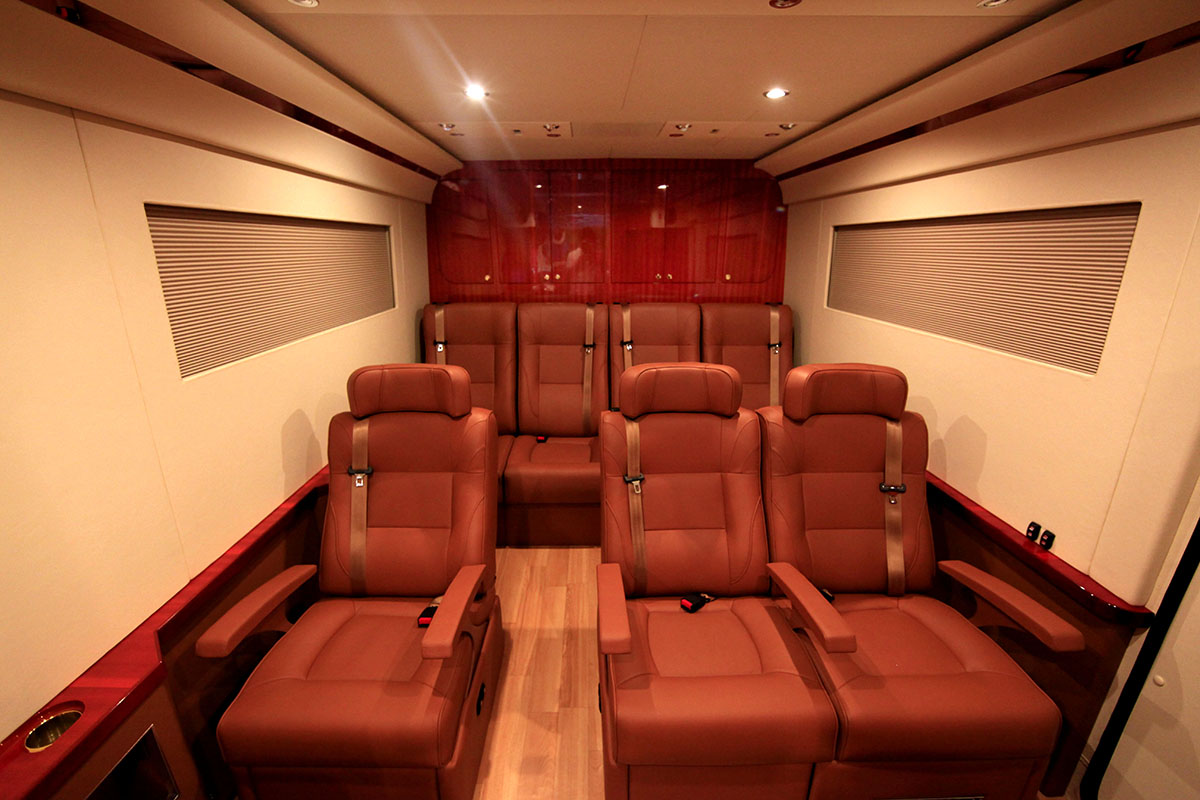

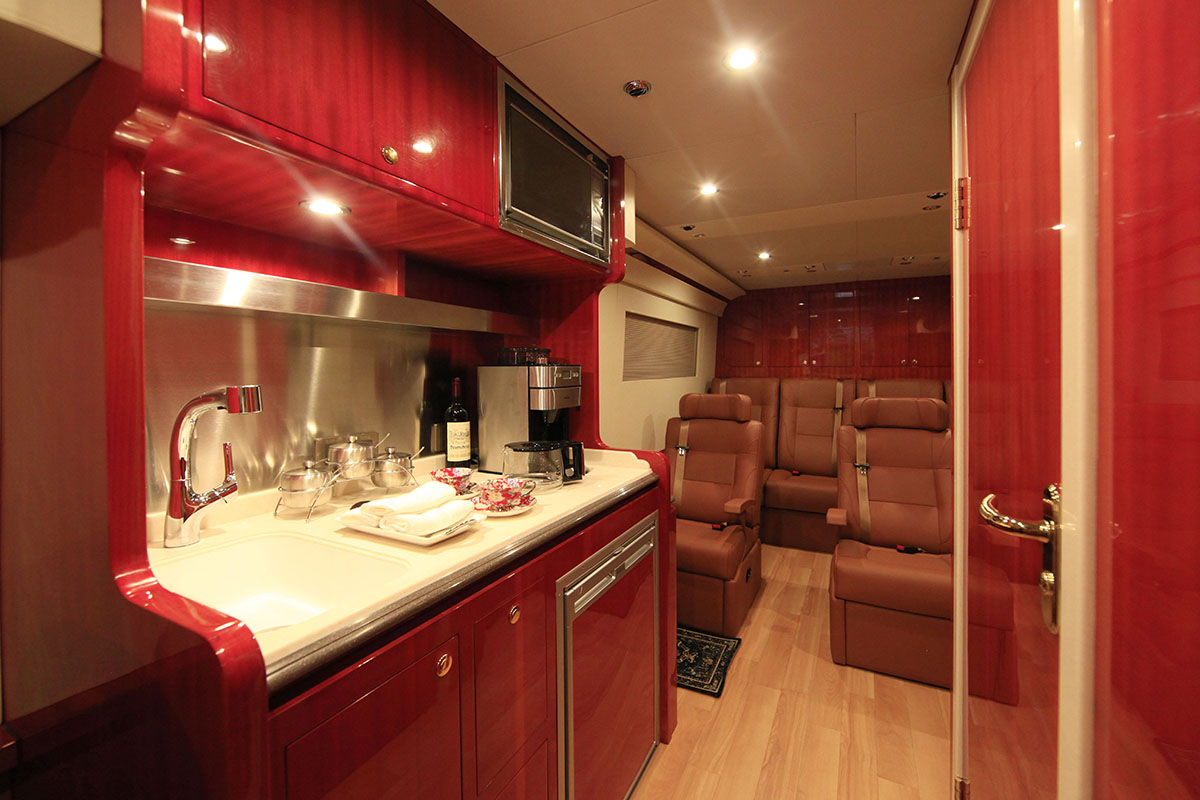

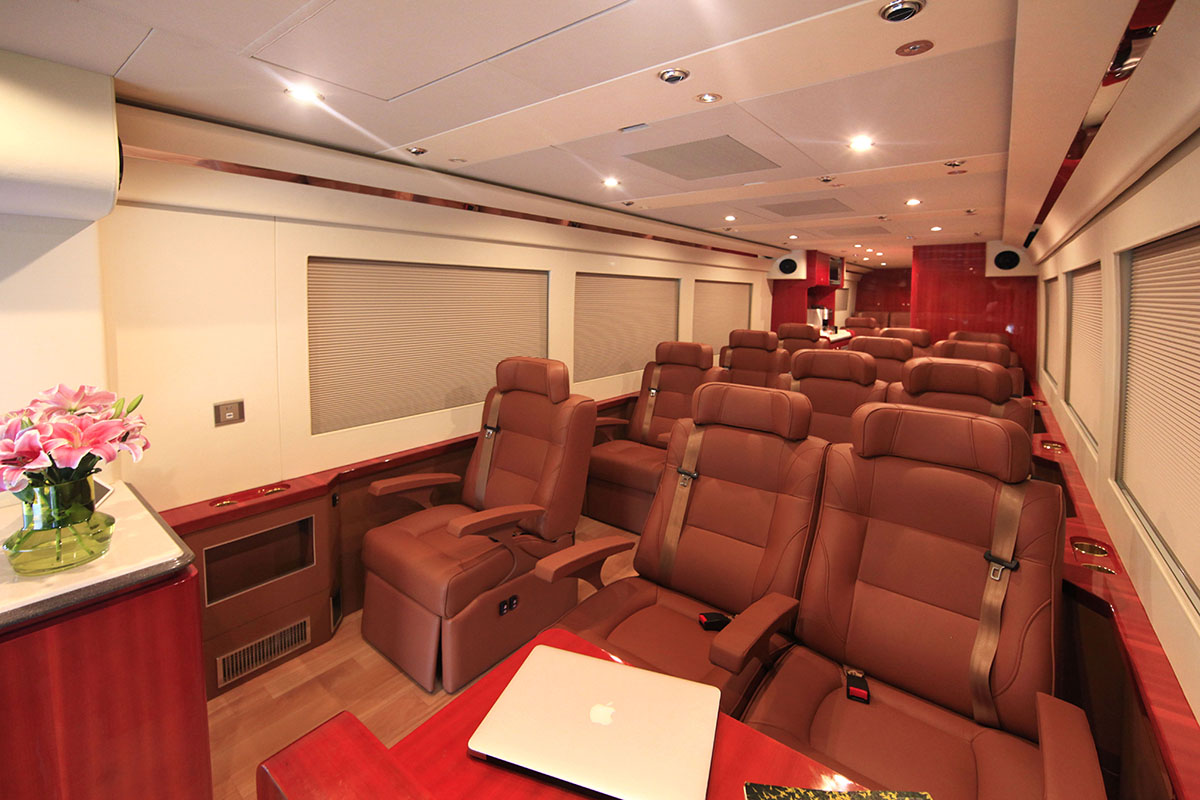

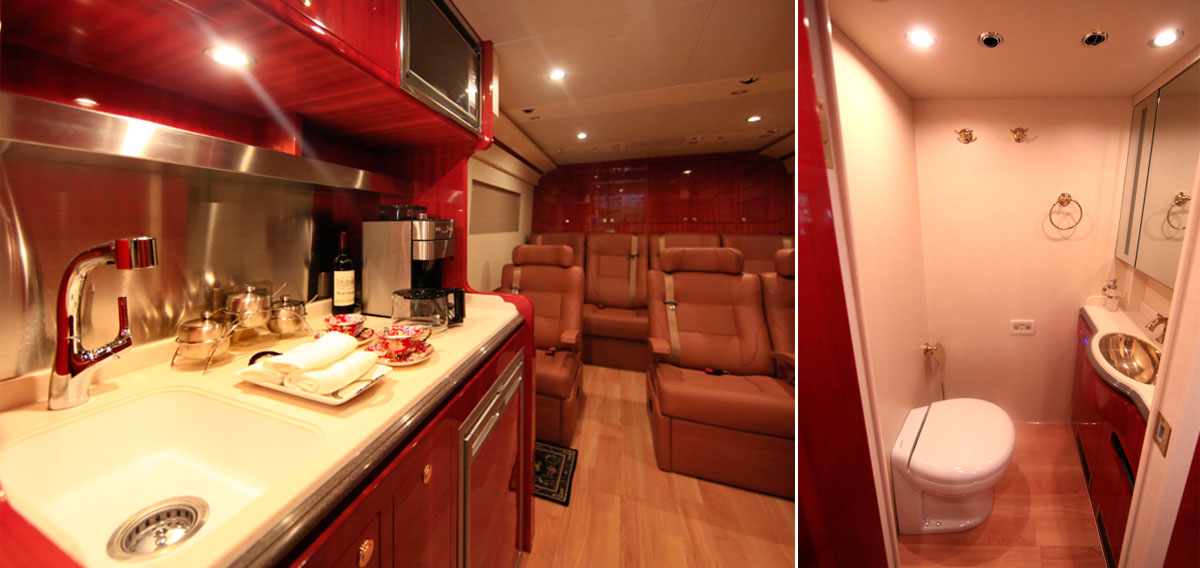

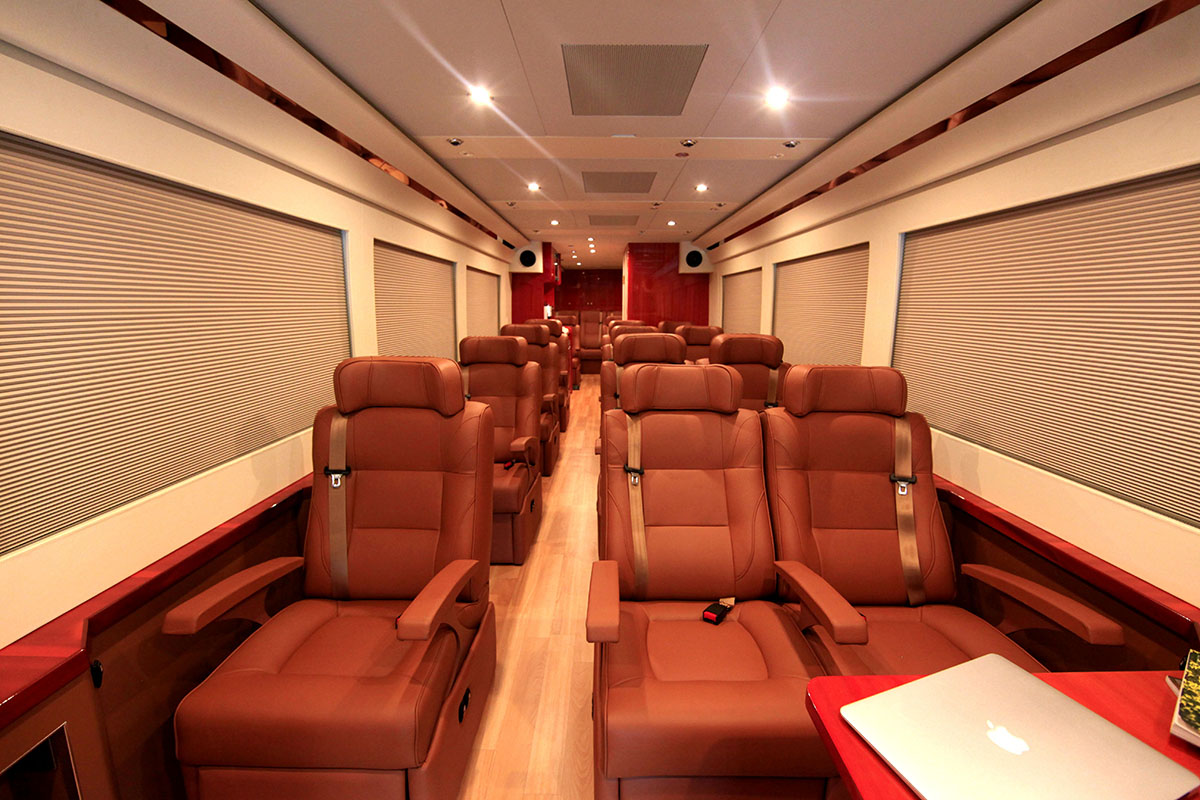

Interior Highlights
Technical Specification
| RV6127-08 Business Bus | ||
| Main configuration | ||
| Project | Configuration | Remarks |
| Body size/mass | ||
| Vehicle L/W/H (mm) | 12000×2550×3990 | |
| Fuel tank capacity (L) | 400L | Standard |
| Body structure | Full load-bearing structure | |
| Driver seat and guide seat | Imported Grammer air-suspended driver's seat; foldable guide seat | Standard |
| Power/Chassis/Body Systems | ||
| Engine | SCANIA DC13103, rated power 295 kw;emission Euro 4 | Standard |
| Displacement of 12L, fuel consumption/100 km: 24L | Standard | |
| Gearbox | SCANIA GR875R Eight-gear smart transmission | Standard |
| Clutch | SCANIA single dry plate clutch | Standard |
| Suspension system | Front independent suspension, 6-airbag air suspension (with ELC electric control lift, rollover protection), front and rear hydraulic shock absorbers, stable resistance | Standard |
| Axle | SCANIA front and rear axles | Standard |
| Steering machine | ZF steering box | Standard |
| Brake safety system | Front and rear disc brakes, SCANIA automatic adjustment arms, SCANIA high torque hydraulic retarder, WABCO ABS EBS TC(ASR), exhaust brake | Standard |
| Tire | Michelin brand | Standard |
| wheel rim | Alcoa Aluminum alloy rim | Standard |
| Centralized lubrication device | Installed | Standard |
| Auto cruise | Installed | Standard |
| Tire pressure monitoring | Installed | Standard |
| Reversing monitor | LCD (integrated into Alpine satellite navigation display, all-in-one) | |
| Air conditioner | Dashboard car air conditioner | 1 set |
| Roof hatch | Security roof hatch | 2 kits |
| Middle door | Safety door | 1 kit |
| Electrical Equipment | ||
| HD LED TV | Samsung (32 inch) electric flip TV (front area) | 1 set |
| Samsung (32-inch) wall-mounted TV (rear area) | 1 set | |
| Video | Alpine car DVD all-in-one player (DVD, satellite navigator GPS, rear view three-in-one) | 1 set |
| Alpine car amplifier | 2 sets | |
| Three pairs of 6.5-inch Alpine speakers (one pair in the driving area,front area, and rear area) | 1 kit | |
| Kitchen Appliances | Panasonic microwave oven | 1 set |
| Car refrigerator 110L | 1 set | |
| Coffee machine | 1 set | |
| Electrical System | ||
| Alternator | Vehicle-mounted DC generator/Prestolite | 1 set |
| Inverter charging system | Tuobao inverter charger | 1 kit |
| Four valve-regulated sealed lead-acid batteries | 4 pcs | |
| Equalizer | 1 kit | |
| Network systems | 3G/4G wireless network system | 1 kit |
| External power supply | External power supply system (manual reel) | 1 kit |
| Power protection | Power protection device (anti-surge, overcurrent and overload, etc.) | 1 kit |
| Desktop interface | Power supply and socket | 1 kit |
| Monitoring | Power system, clean water tank, sewage tank | 1 kit |
| Waterway system | ||
| Smart water pump | 5900-0201（SHURFLO/12V） | |
| Pressure tank | 3400-002 | 1 kit |
| Waterway connectors and accessories | SHURflo | 1 kit |
| Stainless steel clean water tank | 165L | 1 kit |
| Stainless steel sewage tank | 160L | 1 kit |
| Bathroom | Faucet | 1 kit |
| Hardware accessories | 1 kit | |
| Electric toilet TECMA DC24V | 1 kit | |
| Automatic sewage discharge device (including control part) | Pneumatic | 1 kit |
| Fuel heater | Original heater | 1 kit |
| Interiors and Furniture | ||
| Seat | Imported leather custom-made single chair | 5 kits |
| Imported leather custom-made double chair | 7 kits | |
| Driver's chair re-leathered | 1 kit | |
| Tour guide chair re-leathered | 1 kit | |
| Bar counter | Wooden bar + artificial stone countertop | 1 set |
| Side cabinet | Wooden sofa and side cabinet | 11 sets |
| Front partition | Front partition (including detachable table board) | 1 kit |
| Front equipment cabinet | Front equipment cabinet (including detachable table board) | 1 kit |
| Rear detachable stacking table | Rear detachable stacking table | 2 kits |
| Rear locker | Rear locker | 1 kit |
| Floor | Advanced plastic | 1 set |
| Bathroom | Toilet (toilet door + locker + sink) | 1 kit |
| Curtain | Electric organ curtain | 8 kits |
| Leather accessories | Ceiling imported leather | 1 kit |
| Side-walls imported leather | 1 kit | |
| Driving-area imported leather | 1 kit | |
| Dashboard imported leather | 1 kit | |
| Lighting effects | ||
| Interior lighting | Whole vehicle lighting (master control spotlights, self-control reading lights, decorative light strips) | 1 kit |
| External facilities | ||
| Body color and spray painting | Art paint | 1 kit |
| Passenger door | Stainless steel step decoration | 1 kit |
| Auxiliary material | 1 kit | |
| The above configuration is for reference only, subject to change without prior notice | ||
