KLQ6116GHEV electric citybus

Dimension(mm): 11360×2480×3325 mm

Seats: 23+1

Rated Total Mass: 12400 kg

  • Product Origin:

    China
  • Item NO.:

    KLQ6116GHEV
  • Shipping Port:

    Shanghai
  • Lead Time:

    1 month
  • Payment:

    TT, LC
Products Description

Adopting the brand-new six-generation modeling and the internationalleading modeling design concept, the lines of the vehicle are vigorous andround, giving the product a sense of movement and strength, and showingelegance and atmosphere.  Accord to the requirements of vehiclecondition, it can be set that the engine automatically stops when the vehicleenters the station and the engine starts automatically when the vehicle leavesthe station, which is human and comfortable. It breaks through the anxietyproblem of ordinary pure electric mileage, and the fuel saving rate is over 30%compared with ordinary diesel vehicles, which greatly reduces exhaustemissions, creates comfortable traffic conditions for Macao people to travel,and adds blue to Macao's urban operating environment.

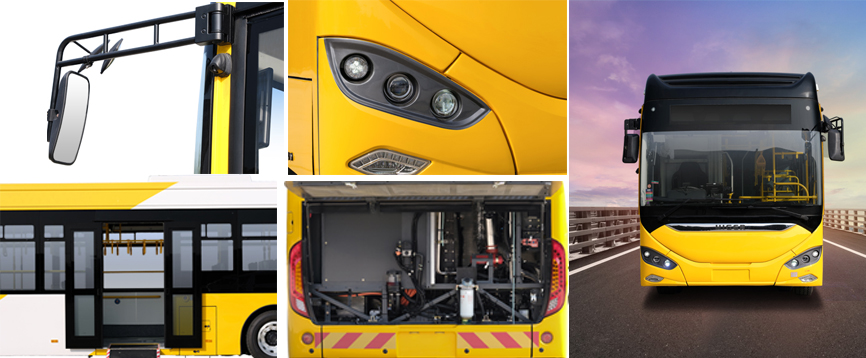

Exterior Highlights

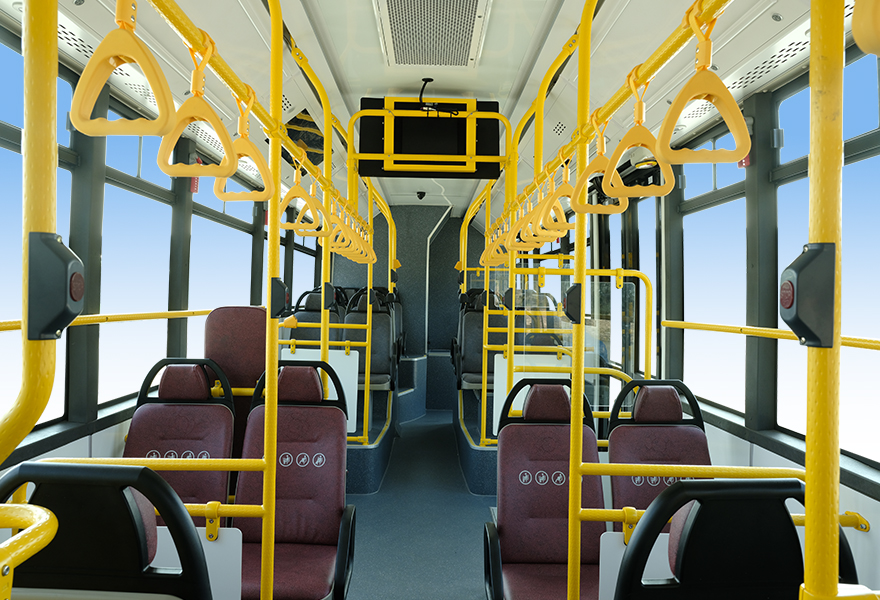

Interior Highlights

Grammer advanced driver's chair and high-backdriver's chair (air suspension), with luxury independent instrument head withroad departure alarm and ACTIA instrument, which have multifunctionalinstrument zoning.
Imported VOGEL seats, of which headrests aremore in line with human mechanics and luxurious riding experience.
USB and get-off bells meet passengers' chargingneeds and warm tips for getting off.


Specification

Electric motor TZ460XSF06
Energy storage system LithiumManganate battery
Complete vehicle Curb Mass 12400
Max.speed 50km/h

Chassis
Front axle Disc 7.5T front axle
Rear axle Disc type 11.5T rear axle
Steering Recirculating ball; interal power steering
Electrical hydraulic steering
Brakes Disc Brake on Front Axle & Rear Axle with EBS
Auxiliary brake Regenerative Brake
Front suspension Full air suspension,2 air springs ,2 shock absorbers,1Antiroll Bar ECAS
Rear suspension Full air suspension, 4 air springs, 4 shock absorbers,1Antiroll Bar ECAS

Body
Wheel type 275/70R22.5-18PR
Length×Width×Height (mm) 11360x2480x3325
Passenger capacity seated 23+1(seats) ,1 wheelchair
Passenger capacity Max. 60
