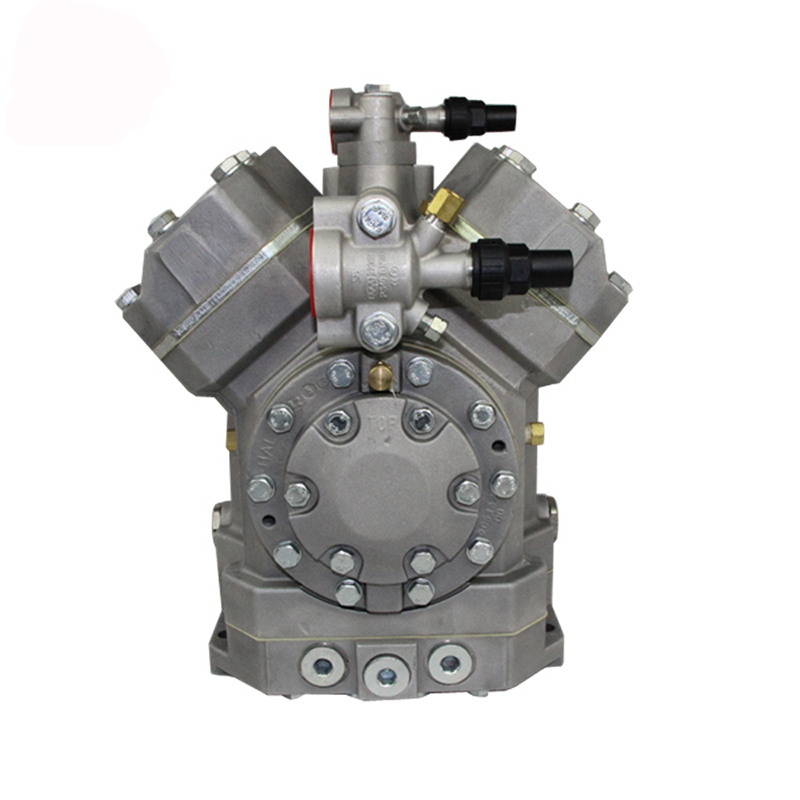

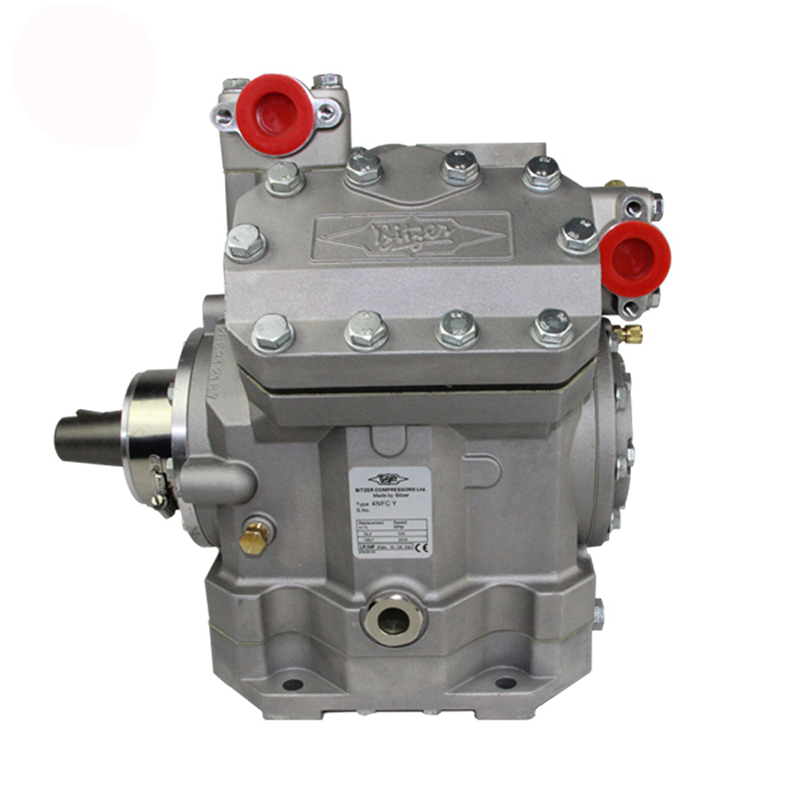

Bitzer 4NFCY Air Compressor
Bitzer compressor is used for bus air conditioner, it suitable for 7meters to 13.5 meters bus and double-decker bus. Create a healthy, comfortable, environmental friendly and fashionable travel environment.(Suitable for CHINESE Yutong, Kinglong, etc, KOREAN Hyundai, Daewoo, JAPANESE Hino, Suzuki, UD, NISSAN, Toyota, etc. EUROPEAN Scania, Caterpillar, Volvo, Benz, etc.)
Bitzer Compressor Technical Data
| Number of cylinders | 4 |
| Bore | 70mm |
| Stroke | 42mm |
| Cylinder volume | 647 cm3 |
| Displacement(1450/3000 rpm) | 56.20/116.40 m3/h |
| Allowed speed range | 500...3500 1/min |
| Magnetic clutch 12V or 24V DC | LA16 Option |
| Mass Moment of intertia | 0.0043kgm2 |
| Max. pressure(LP/HP)1) | 19/28 bar |
| Connection suction line SV | 35MM - 1 3/8" |
| Connection discharge line DV | 35MM - 1 3/8" |
| Lubrication | oil pump |
| Oil type R134a | BSE 55 (Option) |
| Oil type R22 | B5.2 (Standard) |
| Oil charge | 2.0 dm3 |
| Crankcase heater | 70W 12V or 24V DC (Option) |
| Pressure relief valve | Standard |
| Net Weight | 33kgs |
| Gross Weight | 35kgs |
| Dimensions | 385*325*370mm |
| Packing Size | 440*350*400mm |
