Jiexin roof mounted air conditioner for 9-10m bus

Excellent quality, competitive price, good service
  • Product Origin:

    China
  • Item NO.:

    DJPA-M
  • Shipping Port:

    Shanghai, Taicang, Xiamen
  • Payment:

    T/T, L/C
  • MOQ:

    10
Products Description

Jiexin roof mounted air conditioner for 9-10m bus


Air conditioning system configuration

ModelDJPA-M

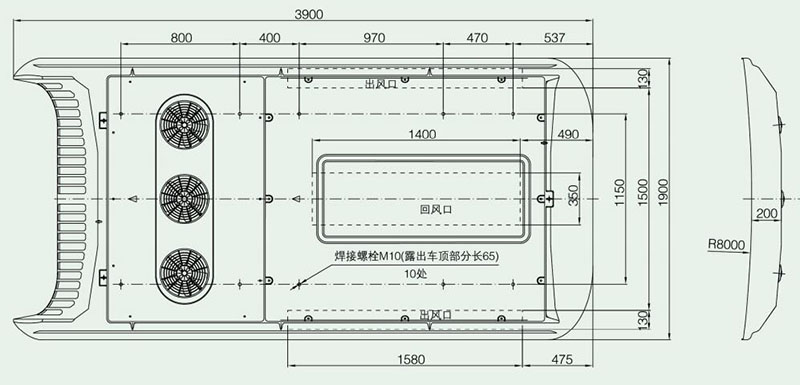

1roof mounted AC drawing Dimension3900 x 1900 x 200 mm



2Main technical parameter

Refrigerating capacity:26000kcal/h               RefrigerantR134a

Compressor displacement: 495cc/r                Standard filling volume kg

Evaporator air volume:5400 m3/h                System power consumption24V

Condenser air volume:4800 m3/h                Total weight≤  180 kg

3System main configuration

Item

Brand

Feature

QTY

UNIT

Compressor

AC compressor

BOCK/BITZER

Imported compressor with high efficiency, stable performance and high reliability

1

UNIT

























Top AC

Evaporate core

JIEXIN

Copper tube, aluminum fin type

2

PIC



Condenser core

JIEXIN

Multi-circuit parallel flow aluminum tube type

1

PIC



Evaporate fan

JIEXIN

Imported bearings, carbon brushes, commutators, large air volume, low noise, long life

6

PIC



Condenser fan

JIEXIN

Imported bearings, carbon brushes, commutators, large air volume, low noise, long life

3

PIC



Expansion valve

FUJIKOKI



high precision

2

PIC



Pressure Switch

LEILI

Composite pressure switch with high sensitivity



1

PIC



Drier

HONGSEN

Low flow resistance, high adsorption capacity



1

PIC



Fresh air system

MABUCHI

Japanese motor, high reliability



1

PIC



AC Housing

JIEXIN

LFT moulding

1

SET













Electric

Control Panel

HENGTAI



PCM211 digital display +Rotate button

1

PIC



Socket

AMP

Silver plating, acid alkali salt corrosion resistance, dustproof and waterproof

1

SET

























Pipe

Aluminum Pipe

JIEXIN

Aluminum Pipe

1

SET



Soft pipe

CODAN

Danish joint venture brand, High voltage resistance, good performance

1

SET













Accessory

Air return grille

JIEXIN

Aluminum alloy material, anti-bacterial and anti-virus filter screen, easy to clean

1

PIC



Drain pipe

JIEXIN

Nylon steel pipe



1

SET



Clamp

JIEXIN

Stainless steel material



1

SET



Install accessory

JIEXIN

Sealing strip, gasket, etc



1

SET
