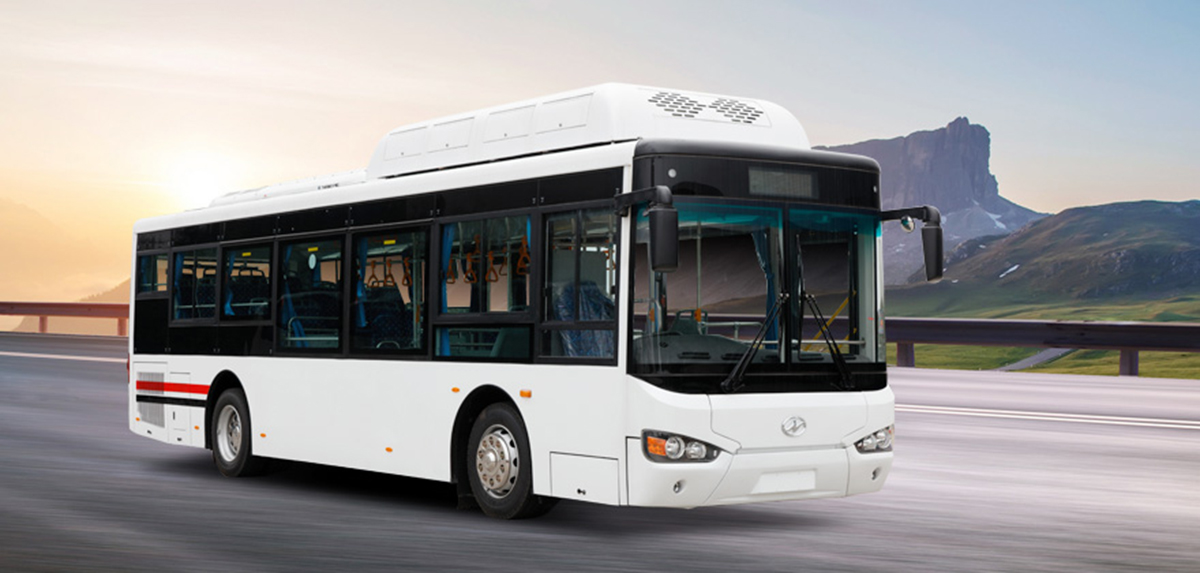

Higer 10 meter CNG city bus KLQ6109G

Dimension(mm): 10500 x 2500 x 3490 mm

Seats: 35+1

Rated Total Mass: 12300 kg

  • Product Origin:

    China
  • Item NO.:

    KLQ6109G
  • Shipping Port:

    Shanghai
  • Lead Time:

    1 month
  • Payment:

    TT, LC
Products Description

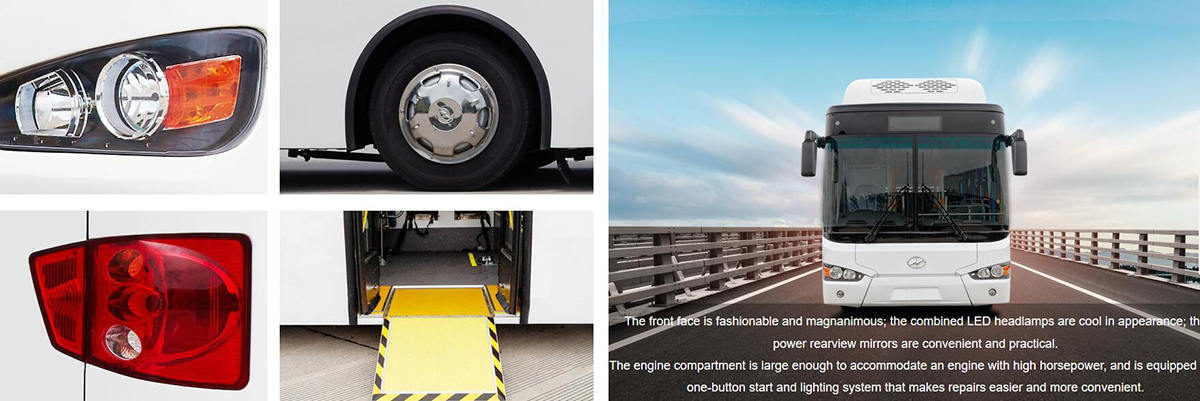

Exterior Highlights

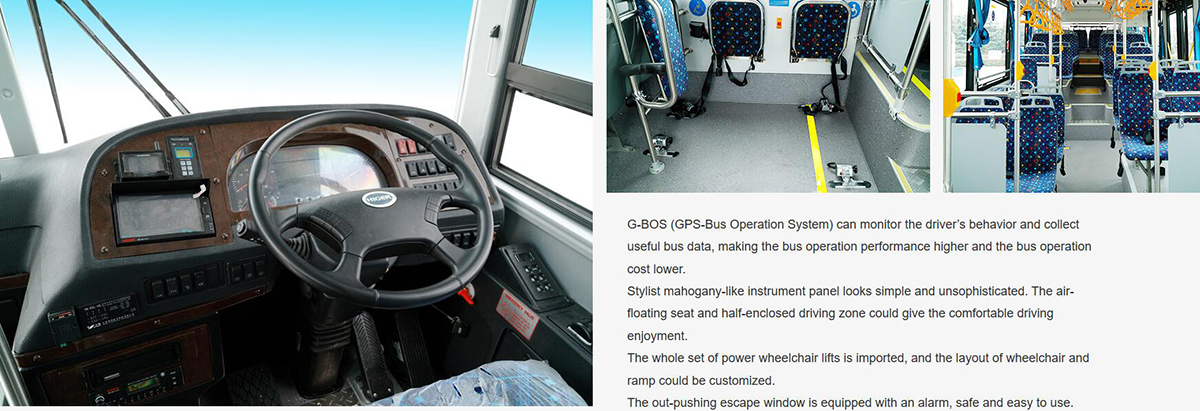

Interior Highlights


Specification

Wheelbase mm 5100
Max. speed(km/h) ≥85
Fuel tank capacity (L) 200
Min ground clearance (mm) 200
Apporach angle/departure angle ° 7 °/ 7 °
Maximum total mass (kg) 15500
CHASSIS
Engine YC6J220-30(220hp, China Ⅲ)/ISDe185 31(185hp, China Ⅲ)/ISDe210 31(210hp, China Ⅲ)/ISDe230 41(230hp, China Ⅳ)/CA6DF3-20E3(200hp, China Ⅲ)
Clutch Diaphragm spring clutch of Φ395
Gearbox CA5-75/QJ805
Suspension Leaf spring suspension / air suspension, 6 airbags ( front:2, rear: 4)
Front axle 4.2T Drum-type front axle
Rear axle 9T Drum-type rear axle
Steering Integrated power steering
Tyre 9.00R20, 10R22.5 Vacuum tire (optional)
Others Eddy current retarder (optional), ABS (optional)
BODY
Air conditioner Overhead non-independent AC (optional)
Stepper structure Two-stage stepper structure
Door Single inner swinging passenger door ( front), biparting inner swinging passenger door (rear)
Window Push-pull type window with lower part enclosed and upper part of aluminum frame
Floor Homemade wear-resistant floor leather with gray base with color points
Seat Engineered plastics hard surfacing passenger seat
AV system Radio
Rear-view mirror Luxurious tie-rod rearview mirror with wide field-of-vision
