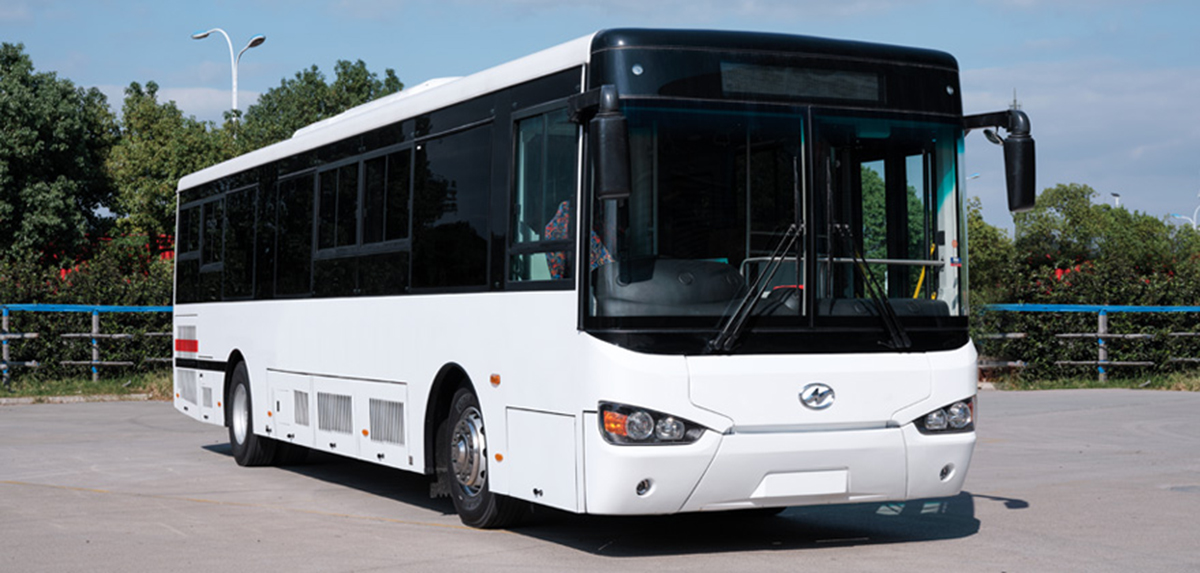

Higer 12 meter urban bus KLQ6129G

Dimension(mm): 12000 x 2550 x 3150 mm

Seats: 95/41+1

Rated Total Mass: 18000 kg

  • Product Origin:

    China
  • Item NO.:

    KLQ6129G
  • Shipping Port:

    Shanghai
  • Lead Time:

    1 month
  • Payment:

    TT, LC
Products Description

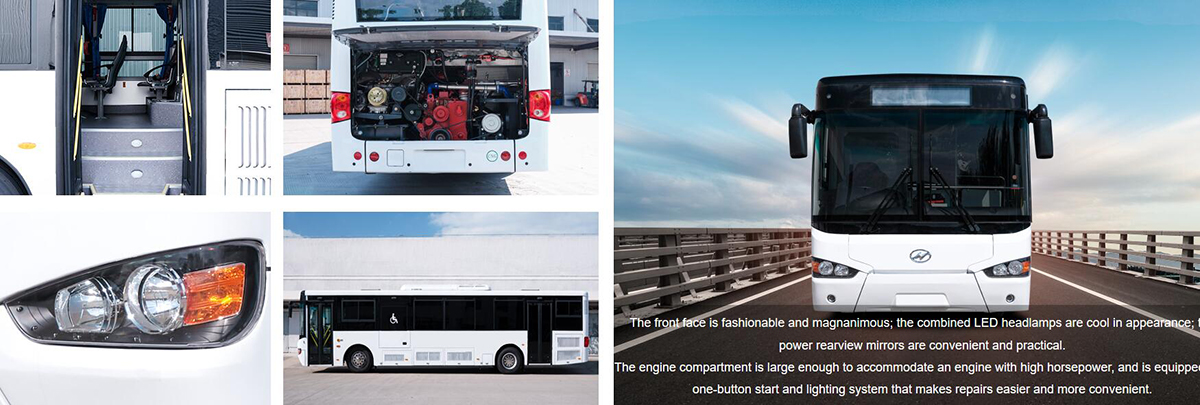

Exterior Highlights

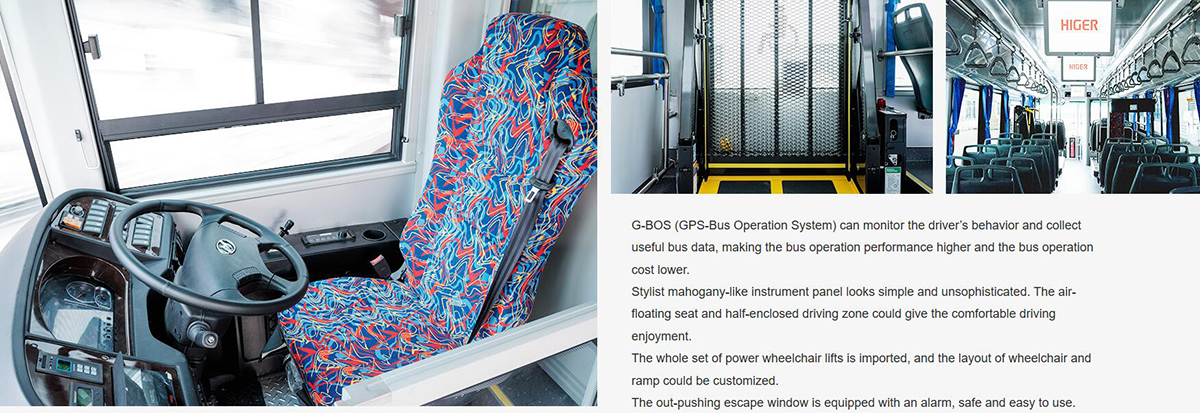

Interior Highlights


Specification

Wheelbase mm 6000
Front/rear wheel track 2096/1838
Front/rear overhang 2700/3300
Minimum ground clearance 150
Apporach angle/departure angle ° 7 °/7 °
Maximum vehicle speed ≥85
CHASSIS
Engine YC6G270-30(270hp, China Ⅲ)
Clutch ZF automatic gear box (built-in hydraulic retarder)
Gearbox
Suspension Air suspension, 6 airbags ( Front:2, Rear: 4)
Front axle ZF gantry, disc front axle
Rear axle ZF gantry, disc rear axle
Steering Hydraulic power steering
Tyre 275/70R22.5
Others Imported angle drive and electromagnetic clutch fan
BODY
Air conditioner Overhead non-independent AC (optional)
Stepper structure One-stage stepper structure
Door Front double and rear double inner swinging passenger doors
Window Upper: Push-pull type window with lower part enclosed and upper part of aluminum frame  Lower: Concealed push-pull type window
Floor Advanced wear-resistant quartz-sand type floor leather
SeatEngineered plastics hard surfacing passenger seat
AV system Radio
Rear-view mirror Luxurious tie-rod rearview mirror with wide field-of-vision
Others Wheelchair electric retractable guide plate (optional)
