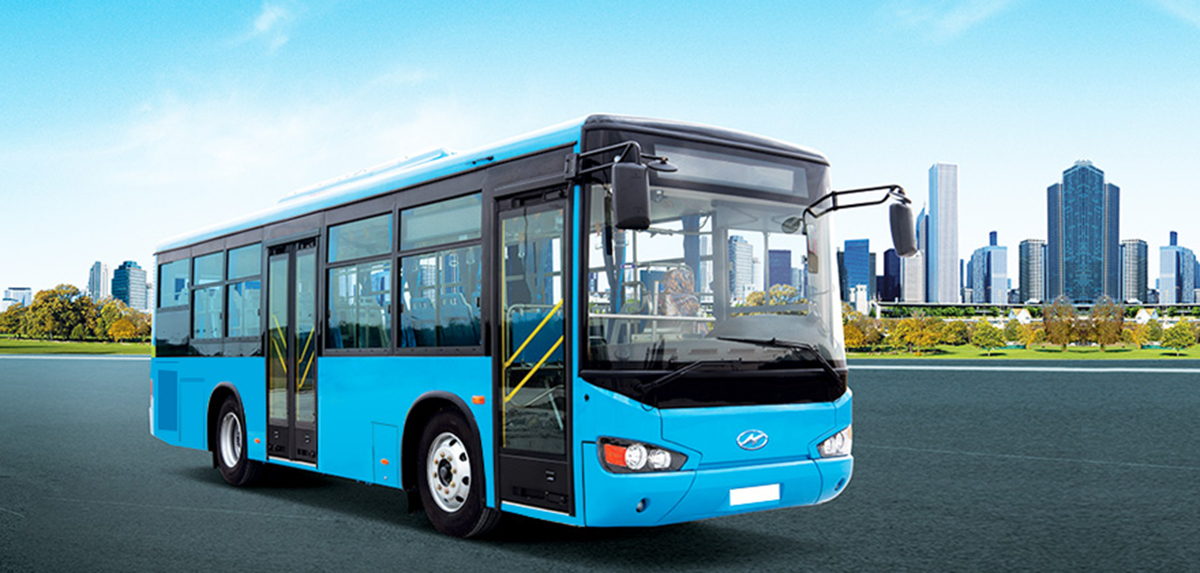

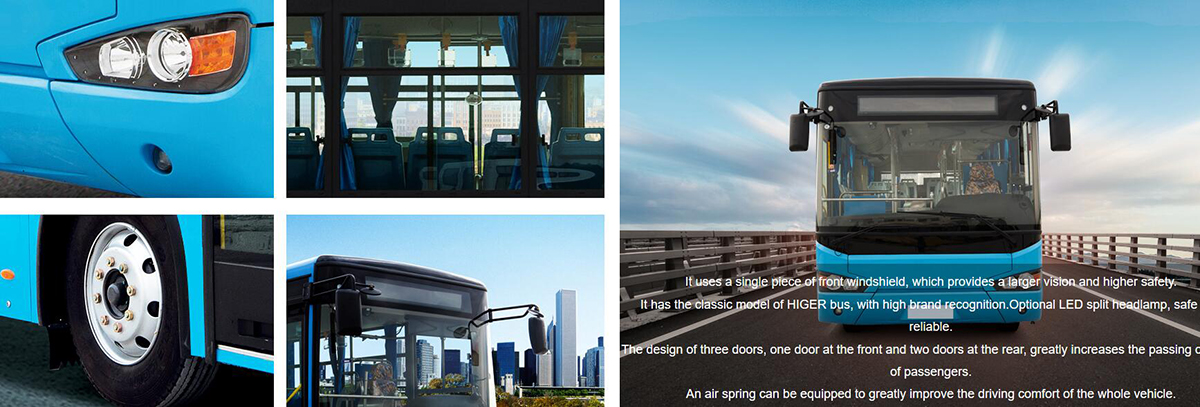

Exterior Highlights

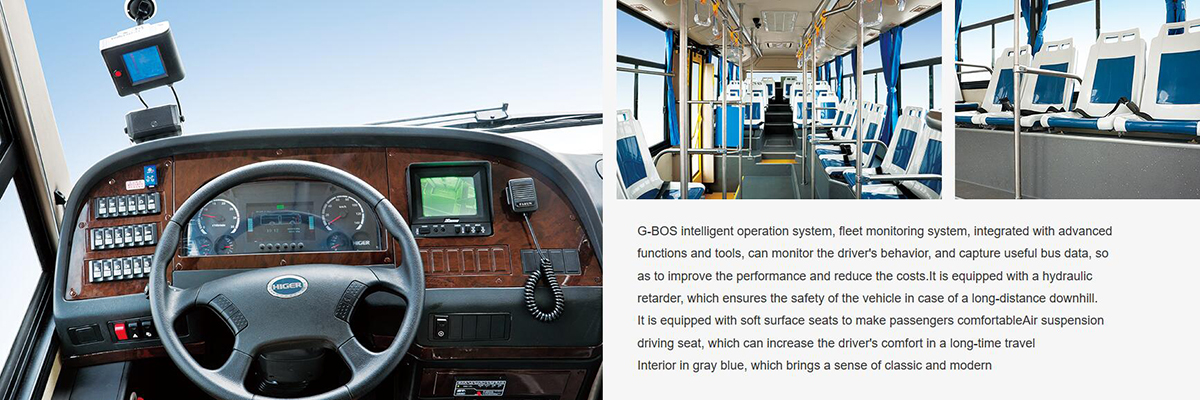

Interior Highlights
Specification
Wheelbase（mm）
4400
Front/rear wheel track(mm)
2020/1800
Front/rear overhang(mm)
2015/2850
mini. ground clearance(mm)
190
Approach / departure angle °
7 °/7 °
Rated total mass（kg）
13200
Maximum vehicle speed(km/h)
≥85
Maximum gradeability %
25
Fuel tank capacity (L)
200
CHASSIS
Engine
YC6J220-30(220hp, China Ⅲ）/ISDe185 31(185hp, China Ⅲ）/ISDe210 31(210hp, China Ⅲ）/ISDe230 41(230hp, China Ⅳ）/CA6DF3-20E3(200hp, China Ⅲ）
Clutch
Diaphragm spring clutch of Φ395
Gearbox
CA5-75/QJ805
Suspension
Leaf spring suspension / air suspension, 6 airbags ( front:2, rear: 4)
Front axle
4.2T Drum-type front axle
Rear axle
9T Drum-type rear axle
Steering
Integrated power steering
Tyre
9.00R20, 10R22.5 Vacuum tire (optional)
Others
ABS (optional)
BODY
Air conditioner
Overhead non-independent AC （optional）
Stepper structure
Two-stage stepper structure
Door
Single inner swinging passenger door ( front), biparting inner swinging passenger door (rear)
Window
Push-pull type window with lower part enclosed and upper part of aluminum frame
Floor
Homemade wear-resistant floor leather with gray base with color points
Seat
Engineered plastics hard surfacing passenger seat
AV system
Radio
Rear-view mirror
Luxurious tie-rod rearview mirror with wide field-of-vision
