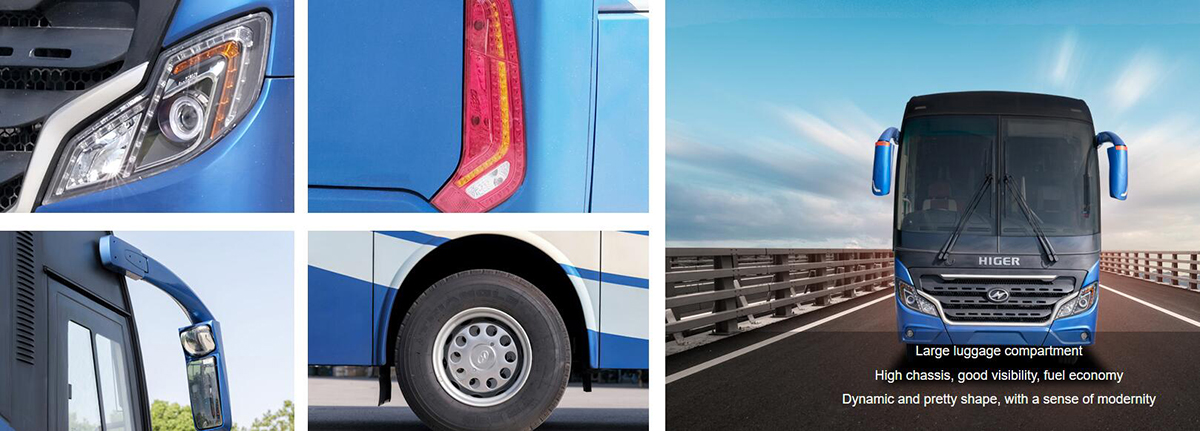

Exterior Highlights

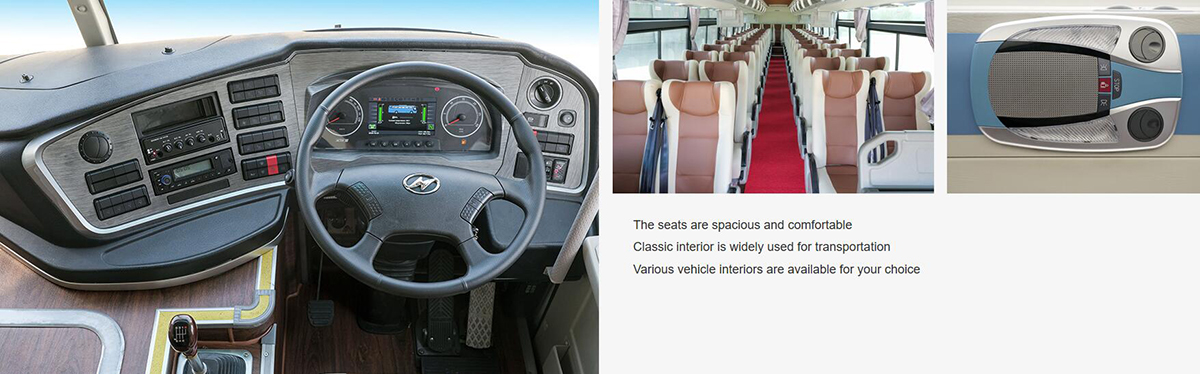

Interior Highlights
Specification
Wheelbase (mm)
6200
Overhang front/rear (mm)
2230/3550
manufacturer's max. total mass
18000
Maximum speed (km/h)
110km/h speed limit
Fuel tank capacity (L)
600
Chassis
Engine
Dongfeng Cummins L325 20 [ 325ps, Euro II ]
Clutch
Diaphragm spring clutch [ 430 ]
Gearbox
FAST 6DS150T
Retarder & ABS
Chinese retarder / Chinese ABS
Propeller shaft
Strengthen propeller shaft
Front axle
fist type forged steel and I beam [7.5 tons]
Rear axle
full-floating axle shaft single reduction hypoid gear [ 13 tons]
Suspension system
multi-leaf spring suspension
Braking system
dual-circuit service braking system; energy storage spring parking brake
Steering system
right hand drive;integral power steering gear
Tyre & Wheel
315/80R22.5 radial tyre
Electric system
24V minus earth
Accumulator / Generator
12V 200Ah x 2 / 28V-150A
Other facilities
automatic slack adjuster
Body
audio-visal system
SD card player system+2x17' manual color LCD
lighting system
ceiling lamp; step lamp; high position braking lamp
luggage rack
both sides
partitioing and seats
[3+2 arrangement JY group seats adjustable] with safety belt.
driver seat: shock absorption and adjustable,with 3-point safety belt
floor
wearable floor leatheroid
passenger door
driver's door; front passenger door
window
up sealed down sliding side windows
emergency roof exit
emergency exit roof hatches with ventilation fan
rear-view
electric rear-view mirror with defroster
